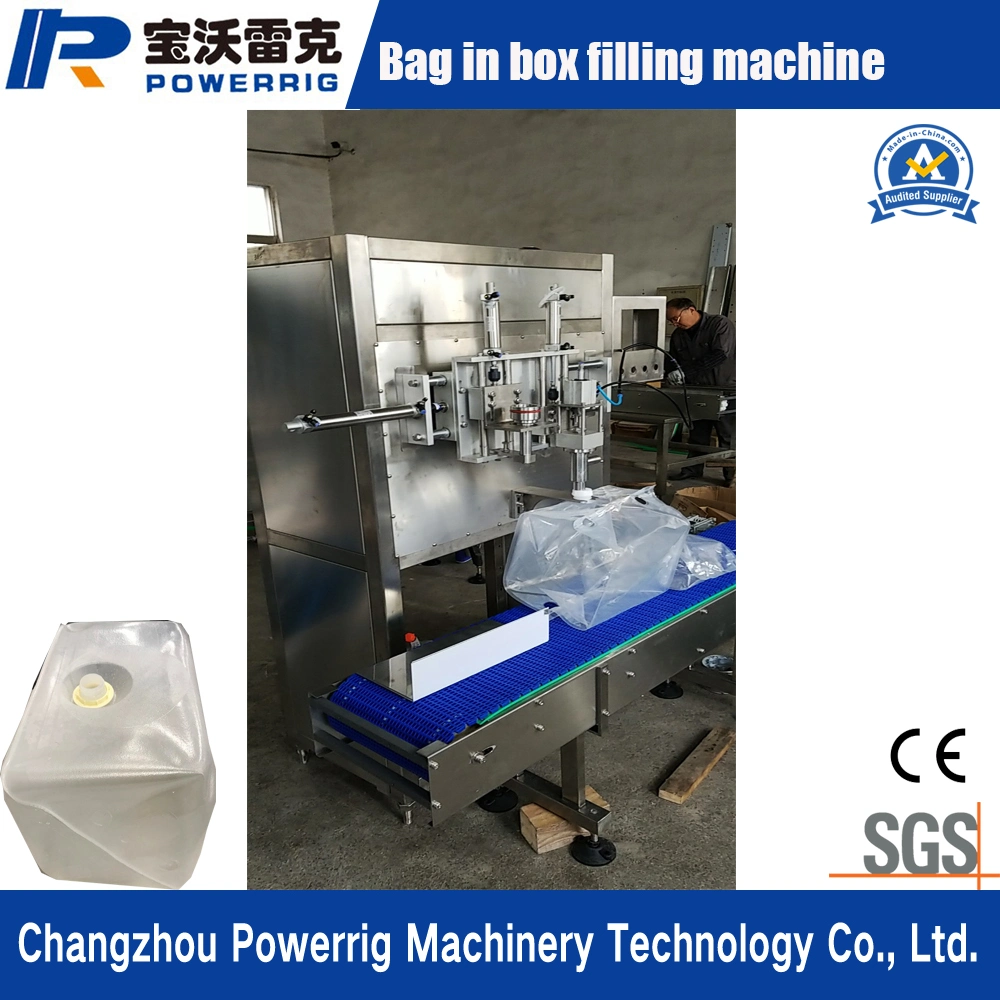

3L-20L bag in box filling machine for aseptic bag in box filling capping machine Paramter
Main technical Parameters
: 1 head
: 1 head
: 120 bags/hour (Depends on put bag speed)
Suitable bag size
:customized according to customer's bag size
3L-20L bag in box filling machine for aseptic bag in box filling capping machine Technology introduce
According to customer requirements, we use 304 stainless steel rotor pump + servo motorfor suction and conveying; its operation is stable and the filling efficiency is high. Manually fix the bag mouth in the box to the filling bayonet, the filling head dive to fill, fill the bag, manually put the cover on the cover belt, and bring the cover belt to bring the cover under the capping head, the top cover The cylinder hits the cover to the capping head, and the capping cap sucks the cap and automatically moves to the bag mouth to cap or gland the upper cap, thereby completing a filling and capping. After the packaging is completed, the bag is transported to the subsequent process along with the conveyor belt. This machine is an alternative to manual work. The machine is equipped with a touch screen, and the setting of the operating parameters are all set in the touch screen. Only the operation of the put bag and the put cover is required. This machine is suitable for the filling and capping of food, daily chemical, washing, agrochemical and other products.
Machine packing and shipping
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
