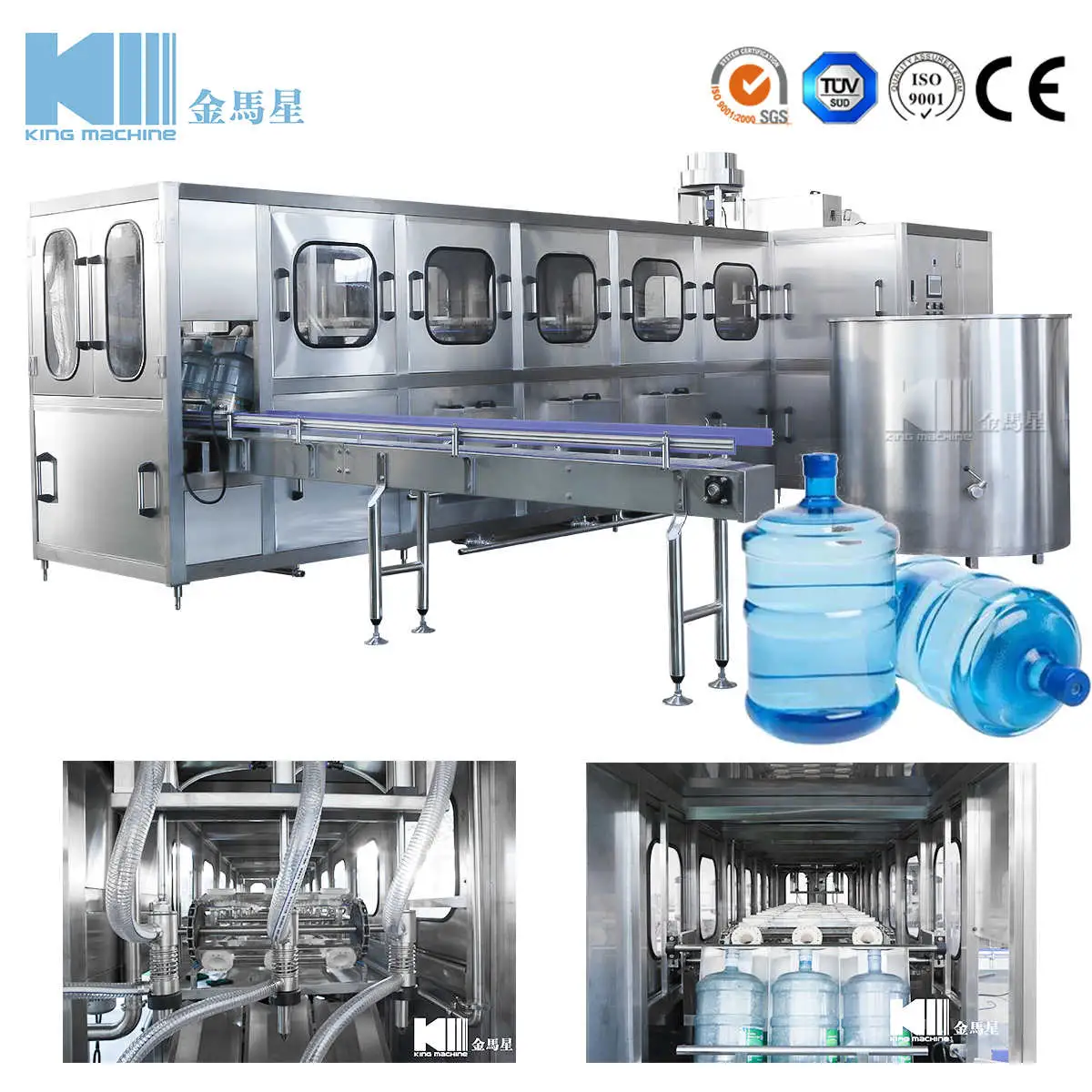

20 Liter Bottle Filling Machine/19 Liter Bottle Filling Machine/5 Gallon Water Bottle Filling Machine




Introduction:
This filling line specially for 3-5gallons barreled drink  water,with type QGF-100,QGF-240,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200,It intergrates bottle washing,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly,The capping machine can cap barrel automatically ,this line equips with water spraying device in order to ensure those caps sterilizer and clean .it also can automatically carry out barrel ,washing,sterilizing ,filling ,capping ,counting and products discharging ,with complete function ,modern design and high degree of automation ,it is a new kind of barreeled water auto-production line ,which intergrates mechanism ,electricity and pneumatics technologies together.

Project Description:

Containers and specifications
Project Name: Full Automatic Complete 3-5 Gallon Barrel Water 50-1200BPH Production LinePH≥4.6
drinking water
MaterialShapeFilling volumeFilling level(mm)Neck type
PET / PCSquare or Round Bottle 3 - 5 GallonDistance from bottle neck
According request
As request
Adjustable specifications of the bottle type(Middle Mould Base)Bottle diameter ≤270mm Bottle Height≤490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label & Control ModePackaging systemPalletizing system


Hot Melt Roll-Fed
PVC Shrink Label
Full Label/ Half Label
Manual / Automatic
Packing systemMin, Spec.Manual
Low position gantry palletizer
Robot Palletizer
High position gantry palletizer
Single Arm Palletizer
Manual Palletizer
Manual
Film shrinker
Wrap Around packer
Robert Packing Machine
1*1
User Ambient ConditionsTemperature:10~40ºC;Humidity:No dew
User Electrical Supply SpecificationVoltage:380V±5%, 3phase; Frequency:50HZ±1%




20 Liter Bottle Filling Machine/19 Liter Bottle Filling Machine/5 Gallon Water Bottle Filling Machine
20 Liter Bottle Filling Machine/19 Liter Bottle Filling Machine/5 Gallon Water Bottle Filling Machine




Flow chart :
Barrel uploader -->Decapping machine-->Leakage inspector-->External brusher-->Internal brusher-->Automatic Rinsing,filling,capping(3in1) machine-->Light checker-->Cap labeling machine-->Date printer-->Barrel lifter-->Barrel stacking machine

20 Liter Bottle Filling Machine/19 Liter Bottle Filling Machine/5 Gallon Water Bottle Filling Machine


King Machine Company indtroducton:

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
20 Liter Bottle Filling Machine/19 Liter Bottle Filling Machine/5 Gallon Water Bottle Filling Machine

FAQ
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
